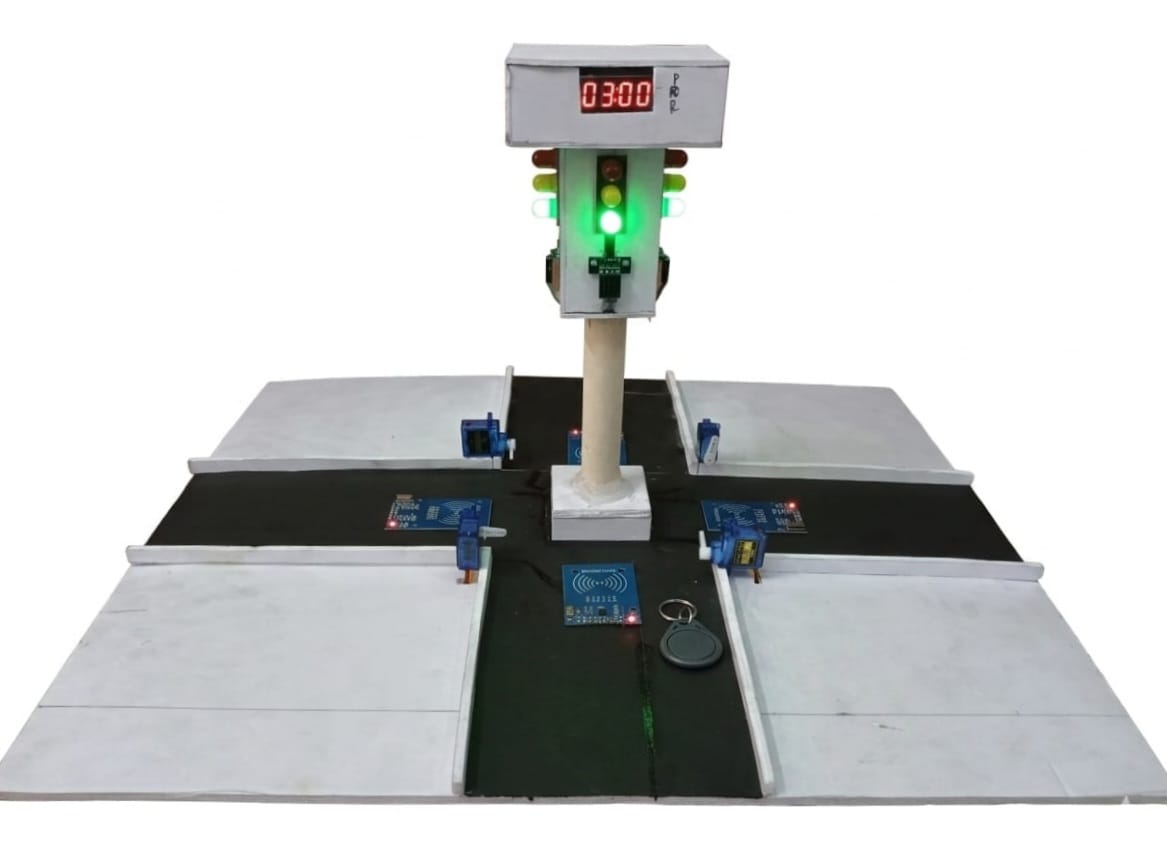

ATMERS Project | IoTrix Lab

Core Hardware Modules

NodeMCU ESP8266 Wi-Fi processor managing sensor inputs and cloud synchronization.

MFRC522 RFID Contactless proximity validation for authorized access tokens.

HC-SR04 Ultrasonic Precision sonar distance checks for vehicle detection.

SG90 Servo Motor Mechanical barrier control for physical gate actuation.

Project Resources

ESP8266 Firmware Motion detection firmware featuring ultrasonic sensing, visitor counting, LED indication, NTP time synchronization, and Twilio WhatsApp alert integration.

Hardware Connections Complete wiring guide for NodeMCU ESP8266, HC-SR04 Ultrasonic Sensor, LED indicator, power connections and GPIO mapping.

Pin Configuration

Component	NodeMCU Pin
HC-SR04 TRIG	D1 (GPIO5)
HC-SR04 ECHO	D2 (GPIO4)
LED Indicator	D5 (GPIO14)
VCC	VIN
GND	GND

System Workflow

Google Assistant

ESP RainMaker

ESP32

Relay Module

Home Appliances

Project Source Codes

1. Arduino Mega Firmware

Controls RFID emergency detection, traffic lights, servo barriers, TM1637 displays, buzzer alerts, and serial communication with the AI system.

Download Arduino Code

View Arduino Source Code



#include
#include
#include
#include

#define RST_PIN 5

// RFID SS pins
#define SS1 47
#define SS2 48
#define SS3 53
#define SS4 46

MFRC522 rfid1(SS1, RST_PIN);
MFRC522 rfid2(SS2, RST_PIN);
MFRC522 rfid3(SS3, RST_PIN);
MFRC522 rfid4(SS4, RST_PIN);

// -------- TM1637 DISPLAYS --------
#define CLK1 34
#define DIO1 35

#define CLK2 36
#define DIO2 37

#define CLK3 38
#define DIO3 39

#define CLK4 40
#define DIO4 41

TM1637Display display1(CLK1, DIO1);
TM1637Display display2(CLK2, DIO2);
TM1637Display display3(CLK3, DIO3);
TM1637Display display4(CLK4, DIO4);

// Servos
Servo servo1;
Servo servo2;
Servo servo3;
Servo servo4;

// Traffic lights
const int r1=22,g1=24,y1=23;
const int r2=25,g2=27,y2=26;
const int r3=28,g3=30,y3=29;
const int r4=31,g4=33,y4=32;

const int buzzer = 10;

bool emergencyActive = false;

bool buzzerState = false;

bool forceRedMode = false;

bool previousLaneSaved = false;

bool countingActive = false;

unsigned long resumeLockTime = 0;

unsigned long lastBuzzerToggle = 0;
unsigned long emergencyStartTime = 0;

const int buzzerInterval = 400;
const int buzzerDelay = 3000;   // 3 seconds

int currentLane = 0;

int previousLane = 0;

int lastStableLane = 0;

// servo tracking
//int servo1Current=0,servo2Current=0,servo3Current=0,servo4Current=0;
//int servo1Target=0,servo2Target=0,servo3Target=0,servo4Target=0;

int servo1Current=90,servo2Current=90,servo3Current=90,servo4Current=90;
int servo1Target=90,servo2Target=90,servo3Target=90,servo4Target=90;

unsigned long previousServoMove = 0;
const unsigned long servoInterval = 4;

unsigned long lastSerialTime = 0;
const unsigned long serialTimeout = 3000;

byte activeUID[4];

unsigned long lastRFIDTime = 0;

byte tag1[4]={0xDE,0x67,0xE0,0x56};
byte tag2[4]={0xE3,0x88,0x39,0xDA};
byte tag3[4]={0xBC,0x51,0xD3,0x3E};
byte tag4[4]={0x3C,0x36,0xD3,0x3E};

void segmentStartup(){

display1.showNumberDec(1111,true);
display2.clear();
display3.clear();
display4.clear();
delay(600);

display1.clear();
display2.showNumberDec(2222,true);
display3.clear();
display4.clear();
delay(600);

display2.clear();
display3.showNumberDec(3333,true);
display4.clear();
delay(600);

display3.clear();
display4.showNumberDec(4444,true);
delay(600);

// clear all displays after animation
display1.clear();
display2.clear();
display3.clear();
display4.clear();

}

void setup(){

Serial.begin(115200);

SPI.begin();

/* VERY IMPORTANT FOR MEGA */
pinMode(53,OUTPUT);
digitalWrite(53,HIGH);

rfid1.PCD_Init();
rfid2.PCD_Init();
rfid3.PCD_Init();
rfid4.PCD_Init();

servo1.attach(6);
servo2.attach(7);
servo3.attach(8);
servo4.attach(9);

pinMode(r1,OUTPUT);
pinMode(g1,OUTPUT);
pinMode(y1,OUTPUT);

pinMode(r2,OUTPUT);
pinMode(g2,OUTPUT);
pinMode(y2,OUTPUT);

pinMode(r3,OUTPUT);
pinMode(g3,OUTPUT);
pinMode(y3,OUTPUT);

pinMode(r4,OUTPUT);
pinMode(g4,OUTPUT);
pinMode(y4,OUTPUT);

pinMode(buzzer,OUTPUT);

display1.setBrightness(7);
display2.setBrightness(7);
display3.setBrightness(7);
display4.setBrightness(7);

segmentStartup();

// show 0000 at startup
display1.showNumberDec(0,true);
display2.showNumberDec(0,true);
display3.showNumberDec(0,true);
display4.showNumberDec(0,true);

allOff();

servo1.write(90);
servo2.write(90);
servo3.write(90);
servo4.write(90);

// ===== STARTUP TEST =====

// Buzzer start sound
digitalWrite(buzzer,HIGH);
delay(200);
digitalWrite(buzzer,LOW);
delay(200);

// Turn ON all lights
digitalWrite(r1,HIGH); digitalWrite(g1,HIGH); digitalWrite(y1,HIGH);
digitalWrite(r2,HIGH); digitalWrite(g2,HIGH); digitalWrite(y2,HIGH);
digitalWrite(r3,HIGH); digitalWrite(g3,HIGH); digitalWrite(y3,HIGH);
digitalWrite(r4,HIGH); digitalWrite(g4,HIGH); digitalWrite(y4,HIGH);

// Servo sweep test
for(int i=0;i<=90;i++){
servo1.write(i);
servo2.write(i);
servo3.write(i);
servo4.write(i);
delay(10);
}

delay(300);

for(int i=90;i>=0;i--){
servo1.write(i);
servo2.write(i);
servo3.write(i);
servo4.write(i);
delay(10);
}

allOff();

// Buzzer end sound
digitalWrite(buzzer,HIGH);
delay(200);
digitalWrite(buzzer,LOW);
delay(200);

Serial.println("READY");

}

// ================= LOOP =================
void loop(){

handleServo();

checkRFID();

if(!emergencyActive && millis() > resumeLockTime){
    handleSerial();
}

handleEmergencyBuzzer();

}

// ---------------- SERVO SMOOTH MOVE ----------------
void handleServo(){

if(millis()-previousServoMove>=servoInterval){

previousServoMove=millis();

moveServo(servo1,servo1Current,servo1Target);
moveServo(servo2,servo2Current,servo2Target);
moveServo(servo3,servo3Current,servo3Target);
moveServo(servo4,servo4Current,servo4Target);

}

}

void moveServo(Servo &servo,int ¤t,int target){

if(current < target){
current += 3;
if(current > target) current = target;
}

if(current > target){
current -= 3;
if(current < target) current = target;
}

servo.write(current);

}

// ================= RFID =================
void checkRFID(){

if(millis()-lastRFIDTime < 1500) return;

readRFID(rfid1,1);
readRFID(rfid2,2);
readRFID(rfid3,3);
readRFID(rfid4,4);

}

void readRFID(MFRC522 &reader,int lane){

if(!reader.PICC_IsNewCardPresent()) return;
if(!reader.PICC_ReadCardSerial()) return;

byte *uid = reader.uid.uidByte;

if(!isEmergency(uid)) return;

lastRFIDTime = millis();

// ================= ENTRY =================
if(!emergencyActive){

// 🔥 SAVE REAL RUNNING LANE (NOT CURRENT)
previousLane = lastStableLane;

for(int i=0;i<4;i++) activeUID[i]=uid[i];

emergencyActive = true;

// 🔥 ACTIVATE EMERGENCY DIRECT (NO SWITCH LOGIC)
activateEmergencyLane(lane);

Serial.print("E");
Serial.println(lane);

/* beep */
digitalWrite(buzzer,HIGH);
delay(150);
digitalWrite(buzzer,LOW);

/* start delay timer */
emergencyStartTime = millis();
}

// ================= EXIT =================
else if(compareUID(uid,activeUID)){

emergencyActive = false;

// 🔥 BLOCK SERIAL OVERRIDE (VERY IMPORTANT)
resumeLockTime = millis() + 3000;   // 3 sec lock

// 🔥 HARD RESET ALL LIGHTS
digitalWrite(r1,LOW); digitalWrite(g1,LOW); digitalWrite(y1,LOW);
digitalWrite(r2,LOW); digitalWrite(g2,LOW); digitalWrite(y2,LOW);
digitalWrite(r3,LOW); digitalWrite(g3,LOW); digitalWrite(y3,LOW);
digitalWrite(r4,LOW); digitalWrite(g4,LOW); digitalWrite(y4,LOW);

delay(100);

// 🔥 ADD THIS (CRITICAL FIX)
digitalWrite(r1,HIGH);
digitalWrite(r2,HIGH);
digitalWrite(r3,HIGH);
digitalWrite(r4,HIGH);

delay(100);

// 🔥 RESTORE PREVIOUS LANE CLEANLY
if(previousLane != 0){

    // 🔥 STEP 1: EMERGENCY LANE → YELLOW
    setYellow(currentLane);
    delay(600);

    // 🔥 STEP 2: EMERGENCY LANE → RED
    setRed(currentLane);

    // 🔥 STEP 3: NEW LANE → YELLOW
    setYellow(previousLane);
    delay(600);

    // 🔥 STEP 4: NEW LANE → GREEN
    setGreen(previousLane);

    // 🔥 SERVO CONTROL
    servo1Target = 90;
    servo2Target = 90;
    servo3Target = 90;
    servo4Target = 90;

    if(previousLane == 1) servo1Target = 0;
    if(previousLane == 2) servo2Target = 0;
    if(previousLane == 3) servo3Target = 0;
    if(previousLane == 4) servo4Target = 0;

    // 🔥 UPDATE STATE
    currentLane = previousLane;
    lastStableLane = previousLane;
}

Serial.println("N");

/* beep */
digitalWrite(buzzer,HIGH);
delay(150);
digitalWrite(buzzer,LOW);

buzzerState = false;
}

reader.PICC_HaltA();
reader.PCD_StopCrypto1();

}

bool isEmergency(byte *uid){

if(compareUID(uid,tag1)) return true;
if(compareUID(uid,tag2)) return true;
if(compareUID(uid,tag3)) return true;
if(compareUID(uid,tag4)) return true;

return false;

}

bool compareUID(byte *a,byte *b){

for(int i=0;i<4;i++){
if(a[i]!=b[i]) return false;
}

return true;

}

void resumeLaneDirect(int lane){

// close all servos
servo1Target = 90;
servo2Target = 90;
servo3Target = 90;
servo4Target = 90;

// 🔥 FORCE ALL LIGHTS RESET FIRST
digitalWrite(r1,LOW);
digitalWrite(g1,LOW);
digitalWrite(y1,LOW);

digitalWrite(r2,LOW);
digitalWrite(g2,LOW);
digitalWrite(y2,LOW);

digitalWrite(r3,LOW);
digitalWrite(g3,LOW);
digitalWrite(y3,LOW);

digitalWrite(r4,LOW);
digitalWrite(g4,LOW);
digitalWrite(y4,LOW);

// small delay for stability
delay(100);

// 🔥 NOW SET ALL RED
digitalWrite(r1,HIGH);
digitalWrite(r2,HIGH);
digitalWrite(r3,HIGH);
digitalWrite(r4,HIGH);

delay(100);

// 🔥 ACTIVATE ONLY REQUIRED LANE
if(lane==1){
    digitalWrite(r1,LOW);
    digitalWrite(g1,HIGH);
    servo1Target=0;
}
if(lane==2){
    digitalWrite(r2,LOW);
    digitalWrite(g2,HIGH);
    servo2Target=0;
}
if(lane==3){
    digitalWrite(r3,LOW);
    digitalWrite(g3,HIGH);
    servo3Target=0;
}
if(lane==4){
    digitalWrite(r4,LOW);
    digitalWrite(g4,HIGH);
    servo4Target=0;
}

// update state
currentLane = lane;
lastStableLane = lane;
}

// ================= SERIAL =================
void handleSerial(){

if(!Serial.available()) return;

lastSerialTime = millis();

char first = Serial.peek();

// 🔥 FIRST HANDLE TIMER (VERY IMPORTANT)
if(first=='T'){

    String msg = Serial.readStringUntil('\n');

    int comma = msg.indexOf(',');

    int lane = msg.substring(1,comma).toInt();
    int timeLeft = msg.substring(comma+1).toInt();

    updateDisplay(lane,timeLeft);

    return;
}

// 🔥 THEN HANDLE TELEGRAM COMMANDS
if(Serial.available() >= 3){

    String cmd = Serial.readStringUntil('\n');

    // -------- SERVO CONTROL --------
    if(cmd == "S1O") servo1Target = 0;
    else if(cmd == "S1C") servo1Target = 90;

    else if(cmd == "S2O") servo2Target = 0;
    else if(cmd == "S2C") servo2Target = 90;

    else if(cmd == "S3O") servo3Target = 0;
    else if(cmd == "S3C") servo3Target = 90;

    else if(cmd == "S4O") servo4Target = 0;
    else if(cmd == "S4C") servo4Target = 90;

    // -------- LED CONTROL --------
    else if(cmd == "L1R"){ digitalWrite(r1,HIGH); digitalWrite(y1,LOW); digitalWrite(g1,LOW); }
    else if(cmd == "L1Y"){ digitalWrite(r1,LOW); digitalWrite(y1,HIGH); digitalWrite(g1,LOW); }
    else if(cmd == "L1G"){ digitalWrite(r1,LOW); digitalWrite(y1,LOW); digitalWrite(g1,HIGH); }

    else if(cmd == "L2R"){ digitalWrite(r2,HIGH); digitalWrite(y2,LOW); digitalWrite(g2,LOW); }
    else if(cmd == "L2Y"){ digitalWrite(r2,LOW); digitalWrite(y2,HIGH); digitalWrite(g2,LOW); }
    else if(cmd == "L2G"){ digitalWrite(r2,LOW); digitalWrite(y2,LOW); digitalWrite(g2,HIGH); }

    else if(cmd == "L3R"){ digitalWrite(r3,HIGH); digitalWrite(y3,LOW); digitalWrite(g3,LOW); }
    else if(cmd == "L3Y"){ digitalWrite(r3,LOW); digitalWrite(y3,HIGH); digitalWrite(g3,LOW); }
    else if(cmd == "L3G"){ digitalWrite(r3,LOW); digitalWrite(y3,LOW); digitalWrite(g3,HIGH); }

    else if(cmd == "L4R"){ digitalWrite(r4,HIGH); digitalWrite(y4,LOW); digitalWrite(g4,LOW); }
    else if(cmd == "L4Y"){ digitalWrite(r4,LOW); digitalWrite(y4,HIGH); digitalWrite(g4,LOW); }
    else if(cmd == "L4G"){ digitalWrite(r4,LOW); digitalWrite(y4,LOW); digitalWrite(g4,HIGH); }

    return;
}

char data = Serial.read();

/* CANCEL EMERGENCY FROM PYTHON */
if(data=='C'){

emergencyActive = false;

digitalWrite(buzzer,LOW);

allOff();

Serial.println("N");   // notify python emergency cleared

}

/* NORMAL LANE COMMANDS */

else if(data=='1') activateLane(1);
else if(data=='2') activateLane(2);
else if(data=='3') activateLane(3);
else if(data=='4') activateLane(4);

else if(data=='0') allOff();

else if(data=='A'){   // 🔥 AUTO MODE RESET

    // FULL RESET
    digitalWrite(r1,LOW); digitalWrite(y1,LOW); digitalWrite(g1,LOW);
    digitalWrite(r2,LOW); digitalWrite(y2,LOW); digitalWrite(g2,LOW);
    digitalWrite(r3,LOW); digitalWrite(y3,LOW); digitalWrite(g3,LOW);
    digitalWrite(r4,LOW); digitalWrite(y4,LOW); digitalWrite(g4,LOW);

    delay(100);

    // ALL RED
    digitalWrite(r1,HIGH);
    digitalWrite(r2,HIGH);
    digitalWrite(r3,HIGH);
    digitalWrite(r4,HIGH);

    // RESET FLAGS
    currentLane = 0;
    lastStableLane = 0;
    forceRedMode = false;
    countingActive = false;
    emergencyActive = false;

    // CLOSE SERVOS
    servo1Target = 90;
    servo2Target = 90;
    servo3Target = 90;
    servo4Target = 90;

    Serial.println("AUTO_RESET_DONE");
}

else if(data=='Y'){
    if(!countingActive){
        countingActive = true;
        countingMode();
    }
}

}

void handleEmergencyBuzzer(){

if(emergencyActive){

/* wait 3 seconds after scan */
if(millis() - emergencyStartTime > buzzerDelay){

if(millis() - lastBuzzerToggle > buzzerInterval){

lastBuzzerToggle = millis();

buzzerState = !buzzerState;

digitalWrite(buzzer,buzzerState);

}

}

}

else{

digitalWrite(buzzer,LOW);

}

}


void switchLane(int prevLane, int newLane){

    if(forceRedMode) return;  // 🔥 HARD STOP

    // ===== STEP 1 =====
    if(prevLane != 0){

        setYellow(prevLane);
        delay(700);

        if(forceRedMode) return;  // 🔥 BREAK IMMEDIATELY

        setRed(prevLane);
    }

    // ===== STEP 2 =====
    setYellow(newLane);
    delay(700);

    if(forceRedMode) return;  // 🔥 BREAK IMMEDIATELY

    setGreen(newLane);

    // ===== SERVO =====
    servo1Target = 90;
    servo2Target = 90;
    servo3Target = 90;
    servo4Target = 90;

    if(newLane == 1) servo1Target = 0;
    if(newLane == 2) servo2Target = 0;
    if(newLane == 3) servo3Target = 0;
    if(newLane == 4) servo4Target = 0;
}

void setRed(int lane){

if(lane==1){ digitalWrite(r1,HIGH); digitalWrite(y1,LOW); digitalWrite(g1,LOW); }
if(lane==2){ digitalWrite(r2,HIGH); digitalWrite(y2,LOW); digitalWrite(g2,LOW); }
if(lane==3){ digitalWrite(r3,HIGH); digitalWrite(y3,LOW); digitalWrite(g3,LOW); }
if(lane==4){ digitalWrite(r4,HIGH); digitalWrite(y4,LOW); digitalWrite(g4,LOW); }

}

void setYellow(int lane){

if(lane==1){ digitalWrite(r1,LOW); digitalWrite(y1,HIGH); digitalWrite(g1,LOW); }
if(lane==2){ digitalWrite(r2,LOW); digitalWrite(y2,HIGH); digitalWrite(g2,LOW); }
if(lane==3){ digitalWrite(r3,LOW); digitalWrite(y3,HIGH); digitalWrite(g3,LOW); }
if(lane==4){ digitalWrite(r4,LOW); digitalWrite(y4,HIGH); digitalWrite(g4,LOW); }

}

void setGreen(int lane){

if(lane==1){ digitalWrite(r1,LOW); digitalWrite(y1,LOW); digitalWrite(g1,HIGH); }
if(lane==2){ digitalWrite(r2,LOW); digitalWrite(y2,LOW); digitalWrite(g2,HIGH); }
if(lane==3){ digitalWrite(r3,LOW); digitalWrite(y3,LOW); digitalWrite(g3,HIGH); }
if(lane==4){ digitalWrite(r4,LOW); digitalWrite(y4,LOW); digitalWrite(g4,HIGH); }

}

void activateEmergencyLane(int lane){

// DO NOT TOUCH currentLane ❗

// close all
servo1Target = 90;
servo2Target = 90;
servo3Target = 90;
servo4Target = 90;

// all red
digitalWrite(r1,HIGH);
digitalWrite(r2,HIGH);
digitalWrite(r3,HIGH);
digitalWrite(r4,HIGH);

digitalWrite(g1,LOW);
digitalWrite(g2,LOW);
digitalWrite(g3,LOW);
digitalWrite(g4,LOW);

// open emergency lane directly (NO TRANSITION)
if(lane==1){ digitalWrite(r1,LOW); digitalWrite(y1,LOW); digitalWrite(g1,HIGH); servo1Target=0; }
if(lane==2){ digitalWrite(r2,LOW); digitalWrite(y2,LOW); digitalWrite(g2,HIGH); servo2Target=0; }
if(lane==3){ digitalWrite(r3,LOW); digitalWrite(y3,LOW); digitalWrite(g3,HIGH); servo3Target=0; }
if(lane==4){ digitalWrite(r4,LOW); digitalWrite(y4,LOW); digitalWrite(g4,HIGH); servo4Target=0; }

}

// ================= TRAFFIC =================
void activateLane(int lane){

  forceRedMode = false;
  countingActive = false;

// FIRST TIME: ALL RED
if(currentLane == 0){

    digitalWrite(r1,HIGH);
    digitalWrite(r2,HIGH);
    digitalWrite(r3,HIGH);
    digitalWrite(r4,HIGH);

    digitalWrite(y1,LOW);
    digitalWrite(y2,LOW);
    digitalWrite(y3,LOW);
    digitalWrite(y4,LOW);

    digitalWrite(g1,LOW);
    digitalWrite(g2,LOW);
    digitalWrite(g3,LOW);
    digitalWrite(g4,LOW);

    delay(500);
}

// SWITCH WITH YELLOW TRANSITION
switchLane(currentLane, lane);

currentLane = lane;
lastStableLane = lane;   // 🔥 TRACK REAL RUNNING LANE

}


void updateDisplay(int lane, int timeLeft){

timeLeft = constrain(timeLeft,0,99);

int value = lane*100 + timeLeft;

uint8_t colon = 0b01000000;

if(lane==1) display1.showNumberDecEx(value, colon, true);
if(lane==2) display2.showNumberDecEx(value, colon, true);
if(lane==3) display3.showNumberDecEx(value, colon, true);
if(lane==4) display4.showNumberDecEx(value, colon, true);

}

void countingMode(){

    forceRedMode = true;   // 🔥 BLOCK ALL TRANSITIONS

    // 🔥 IMMEDIATE HARD RESET (NO DELAY CONFLICT)
    digitalWrite(r1,LOW); digitalWrite(g1,LOW); digitalWrite(y1,LOW);
    digitalWrite(r2,LOW); digitalWrite(g2,LOW); digitalWrite(y2,LOW);
    digitalWrite(r3,LOW); digitalWrite(g3,LOW); digitalWrite(y3,LOW);
    digitalWrite(r4,LOW); digitalWrite(g4,LOW); digitalWrite(y4,LOW);

    delay(50); // small stabilization

    // 🔥 FORCE ALL RED
    digitalWrite(r1,HIGH);
    digitalWrite(r2,HIGH);
    digitalWrite(r3,HIGH);
    digitalWrite(r4,HIGH);

    // 🔥 CLOSE ALL SERVOS
    servo1Target = 90;
    servo2Target = 90;
    servo3Target = 90;
    servo4Target = 90;

    // 🔥 IMPORTANT: RESET CURRENT LANE
    currentLane = 0;
}

void allOff(){

digitalWrite(g1,LOW);
digitalWrite(r1,LOW);
digitalWrite(y1,LOW);

digitalWrite(g2,LOW);
digitalWrite(r2,LOW);
digitalWrite(y2,LOW);

digitalWrite(g3,LOW);
digitalWrite(r3,LOW);
digitalWrite(y3,LOW);

digitalWrite(g4,LOW);
digitalWrite(r4,LOW);
digitalWrite(y4,LOW);

updateDisplay(1,0);
updateDisplay(2,0);
updateDisplay(3,0);
updateDisplay(4,0);

servo1Target = 90;
servo2Target = 90;
servo3Target = 90;
servo4Target = 90;
}

2. Python AI Traffic Controller

YOLOv8 vehicle detection, adaptive signal timing, Telegram dashboard, PDF reporting, Email alerts, WhatsApp alerts and emergency response logic.

Download Python Code

View Python Source Code



# ATMERS AI Controller
# YOLOv8 Vehicle Detection
# Arduino Mega Integration
# Telegram Control Panel
# Email Alerts
# WhatsApp Alerts
# PDF Reporting

from ultralytics import YOLO
import cv2
import serial
import threading
import queue
from telegram.ext import Updater

# Complete source available in download

Technologies Used

ESP32 ESP RainMaker Google Assistant Arduino IDE Bluetooth Provisioning OTA Updates EEPROM AceButton Wi-Fi Embedded C++

Adaptive Traffic Management & Emergency Response System

Project Overview
